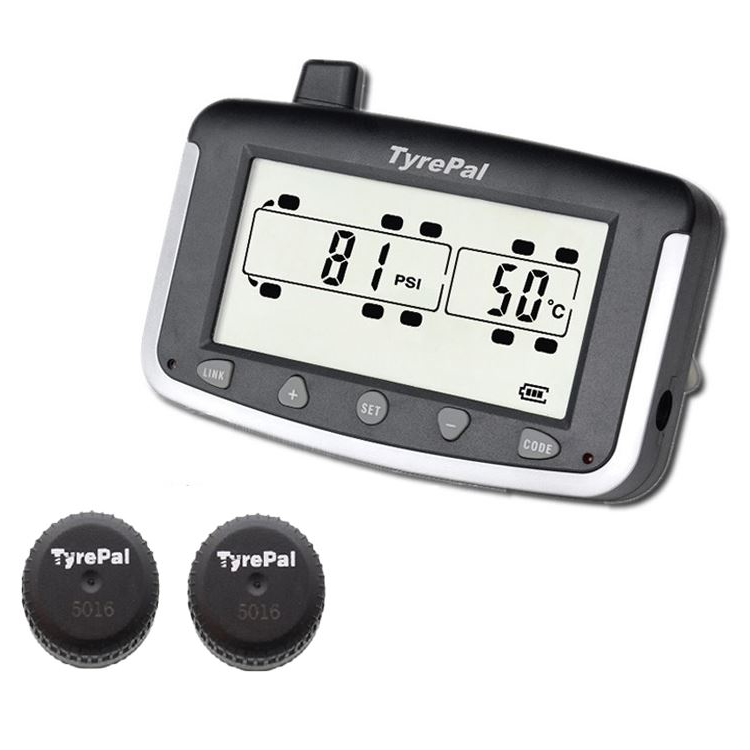

Tyrepal TC215B tyre pressure alarm kit (10 Sensors)

Description

TyrePal TC215B tyre pressure alarm is based on the highly successful commercial monitor and is supplied with compact sensors for caravans and motorhomes.

Systems are available for two or more tyres (maximum 22 tyres). Just order additional sensors for more wheels if required.

Additional sensors for TC215B system £33 including VAT

Continuous monitoring

The system continuously monitors the pressure and temperature of up to 22 tyres while you are driving and displays the pressure and temperature of each of the tyres in succession. It gives a clear audible and visible alert in the event of:

• Air loss (puncture etc.)
• Low pressure
• High pressure
• High temperature

Easy to fit

There’s no need to remove the tyres to fit the TCSB sensors: they simply screw onto the tyre valves in place of the standard dust caps and can be locked in place with a security key.

Sensors are suitable for tyre pressures up to 99psi and are powered by a CR1632 cell which lasts up to 2 years before it needs replacing.

NOTE: Do not fit sensors to tyres that have been treated with internal tyre sealant

Easy trailer link

Just pushing a button allows you to select or deselect trailer monitoring. This is ideal for caravans and motorhomes with trailers.

Monitor

The monitor, powered by a rechargeable battery, automatically shuts down when not in use and reactivates as soon as the vehicle is used. The monitor fits a robust articulated mount that can be attached to the screen with a strong suction pad or permanently screwed to the vehicle.

TyrePal TC215B supplied complete

The system is supplied with everything required and is ready to set up and start monitoring.

Signal repeater

Where the transmission distance from sensor to monitor is greater than about 7 metres, a signal repeater is recommended to increase range and improve stability of the system. This is typically not required for caravans towed by cars, but is recommended for large motorhomes towing trailers.

TC215B Specifications

The TC215B can monitor up to 22 wheels and displays the pressure and temperature of the tyres. When a trailer is connected, pushing a button establishes a wireless data link between the monitor and the trailer tyres.

Pressure alert levels can be set for each axle on the towing vehicle and a single setting for all the tyres on the trailer. The high temperature alert level applies to all tyres. Clear and distinct alerts are given for air loss, low pressure, high pressure and high temperature.

Warnings are also given if a sensor signal is lost, if a sensor battery is low, or when the monitor battery needs recharging.

To save battery power, both monitor and sensors automatically shut down when the vehicle is not is use. They reactivate as the vehicle is used.

Dimensions	115 x 73 x 27mm, weight 132g.Clear LCD screen with automatic backlight has view size 80 x 40mm.
Power	Powered by internal lithium battery recharged from vehicle power supply. Automatically shuts down when not in use and reactivates as vehicle is used. Charger input 12 to 24V dc.
Mounting	Supplied with robust articulated mount with suction or screw fitting. Simple dashboard stand is also supplied.
Display	Continuously cycles through all wheel positions and displays pressure and temperature for each tyre. Additional detail is displayed as required.
Alerts	Bright red flashing LED, plus audible alarm. Audible alarm can be silenced by pressing any button.Distinct alerts are given for the following conditions: Air loss (puncture etc.) Rapid air loss (blow-out) Pressure below user-set threshold Pressure above user-set threshold Temperature above user-set threshold Warnings are also given if the sensor signal is lost, if a sensor battery is low or when the monitor battery needs recharging.
Units	User selected. Pressure: Bar or psi, Temperature: °C or °F



Sensor specification TCSB

Dimensions	20.5 x 20.5mm (length x diameter). When fitted, they extend approx. 12mm beyond the length of the tyre valve.
Weight	9g. Rebalancing of wheels is not normally required.
Security	Integral locking screw deters casual theft of sensors.
Pressure range	0 to 6.8bar (0 to  99psi) ± 0.1 bar (1.5psi)
Temperature	Operational temperature -40 to 80°C Accuracy ± 3°C
Sensor battery	Replaceable CR1632, service life up to 2 years
Sleep mode	To conserve battery life, sensor stops transmitting when vehicle is parked and resumes wheels are turning.
