Observing an RV 12 volt system not working when plugged in is an occurrence no RV owner should encounter. Unfortunately, this phenomenon happens more frequently than RVers can imagine.
While battery issues are the most common culprit, other factors can explain why your RV has no power in its 12-volt system. So sit back as we explore the causes of problems in your RV’s 12-volt electrical system, including how to fix them.
RV 12 Volt System Not Working When Plugged in: Reasons & Solutions
1. Dead Batteries
Batteries don’t last a lifetime, regardless of how “revolutionary” the technology is. An RV not getting power from battery units could indicate a “dead” power cell.
RVs use deep-cycle batteries to operate different 12-volt appliances and electrical systems. Unfortunately, these power cells can only last six years with top-notch maintenance. Neglecting them could reduce the battery’s lifespan by three years.

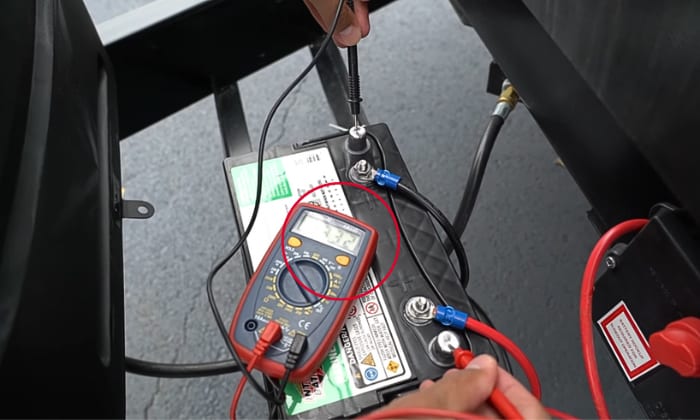

You cannot revive a “dead battery.” However, you might want to test the battery’s charge with a multimeter and see if it’s below 10.5 volts. In that case, your power cell has fully discharged. It can explain why you have no power to RV 12-volt devices.
Try a powerful charger to “recharge” the deep cycle battery. However, this fix is only temporary because the battery cannot hold its charge for long. You must replace it with a new unit.
We recommend investing in a good battery monitor to avoid the inconvenience of a battery dying out on you.
2. Battery Undercharging
Improperly charged batteries are almost as problematic as “dead” ones. RV lights not working is often a sign of poorly charged batteries. There’s insufficient electricity flowing through the circuits.
Battery manufacturers have specific charging times for their products. And RVers must observe these recommendations to ensure their RV 12-volt devices work properly.
Read the instructions on the ideal battery charging times. Be patient because it takes up to 24 hours to get the deep-cycle RV battery charged fully. A battery monitor should keep you updated with your unit’s charge levels.

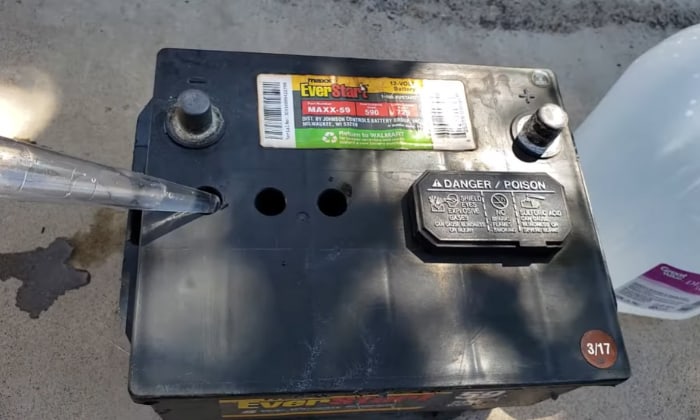

3. Dried Up Batteries
Most RVers use maintenance-free batteries (i.e., sealed lead-acid) to operate their 12-volt systems, while others opt for conventional flooded lead-acid (FLA) types.
If you’re using FLA batteries, you might want to ask when you last checked the battery fluid levels. Neglecting this maintenance procedure can cause the battery to lose power, reducing its performance. Overcharging can have a similar effect.
And that’s why you’re experiencing these electrical problems with your 12-volt system.
Open the FLA battery’s caps and check electrolyte levels. Buy the correct solution and pour it into each battery compartment, topping them up with battery fluid until the ideal level.
4. Issues with Battery Connections
Loose battery connections could explain why your camper has power but no lights, although other factors can also produce this issue. Check the connectors and battery terminals for signs of corrosion, including frayed wires.
Inspect the battery cables and connectors for integrity and tightness. Tighten the clamps on the battery terminals, ensuring adequate contact between surfaces to facilitate electrical flow.
You can also clean corroded terminals and battery cables to ensure sufficient power to 12-volt RV systems.

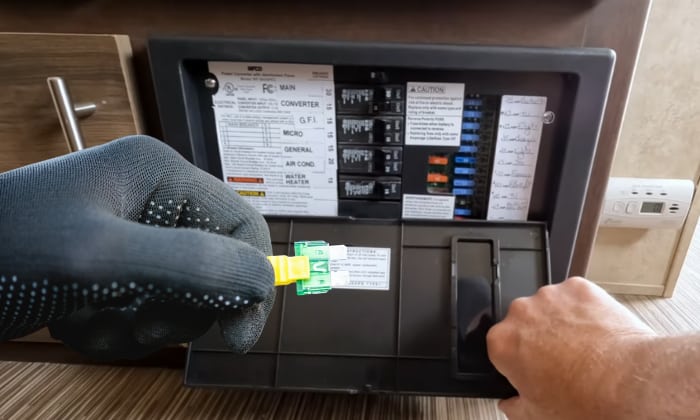

5. Fuse Issues
Suppose your battery has a full charge and the connectors are in pristine condition. In that case, you can suspect issues with the fuse.
Fuses are vital safety devices, preventing catastrophes related to electrical overloading and short-circuiting. Unfortunately, they aren’t indestructible, and fuses can burn or blow out.
Inspect RV fuses, especially the inverter/converter fuse. If you’re unsure about its location, the RV’s electrical schematics can help. Check for signs of burnout or broken wires and replace the fuse with the correct amperage rating.
6. Concerns with Inverter/Converter Connections
If the fuse is good, the problem might be secondary to a bad inverter/converter connection. Like batteries, an inverter/converter device connects wires from the battery (DC to AC) and shore power (AC to DC).
Unfortunately, these connections can loosen over time. Hence, you might have issues powering your 12-volt device even with a fully-charged battery.
Tightening the inverter/converter connections should help reestablish electrical flow to your 12-volt devices.
7. A Tripped Circuit Breaker
RVs are not immune to breaker tripping, where the circuit breaker supplying electricity to a specific device “turns off” to protect it against power surges and similar electrical faults.
A tripped breaker cuts off electrical flow to the appliance or electrical system connected to it. This incident can explain why the RV’s 12-volt electronics are not working.
Check your RV’s wiring diagram to identify the tripped circuit breaker.

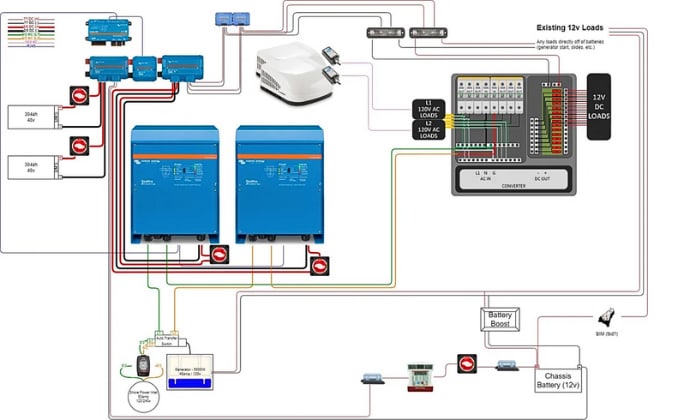

For example, the following schematic is specific to the Forest River RV WF-8930/50 Series Distribution Center. The image presents the different electrical components mated to the control panel.
Here’s another example of an RV electrical wiring schematic from Reddit user r/Victron.
Once you’ve isolated the tripped breaker, you can switch it back on. Alternatively, pressing the Ground Circuit Fault Interrupter (GFCI) reset button should do the trick.
Check your batteries and see if they have small resettable circuit breakers connected to them. If the mini volt won’t turn on, there’s a good chance these tiny breakers tripped. Resetting them should address the problem.

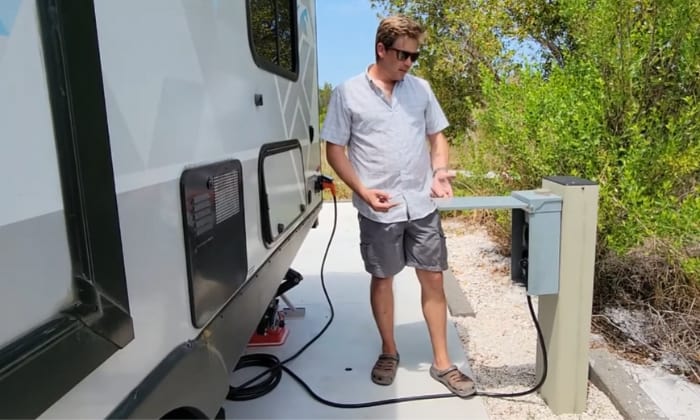

8. No Electricity from Shore Power
If the RV’s 12-volt system is not working on shore power, chances are high that you overlooked plugging it into the pedestal.
Although 12-volt batteries can operate almost any RV device, they still require charging. The converter draws AC electricity from an electrical utility (shore power) and can transform it into DC electricity in the battery.
Ensure to plug the RV into shore power. If the issue persists, an RV electrical technician can help diagnose the exact cause and institute more definitive solutions.
An RV 12 volt system not working when plugged in can bring unnecessary inconvenience and discomfort to RV families. The RV’s cabin will be dark, and modern electric appliances will not function.
Fortunately, identifying the cause of such issues is easy, and the fixes are straightforward. RVers only need proper guidance in troubleshooting. When everything else fails, an RV technician is always available. Professional services might be costly but worth it.
