Dometic are one of the largest brands in the leisure industry, catering for a wide range of applications from Caravans, Motorhomes and RV’s to Boats and Trucks. Dometic offer a wide range of products for Motorhomes and Caravans including the Dometic Air Conditioner range featuring models such as the Dometic FreshJet which is a traditional roof mounted air conditioner for motorhomes as well as the Dometic FreshLight which is an air conditioning unit with a built in roof light (ideal for letting in natural light without losing an existing roof light totally) and the FreshWell air conditioners which are fitted into or under lockers and offer fantastic cooling power with minimal noise and with a lower centre of gravity.

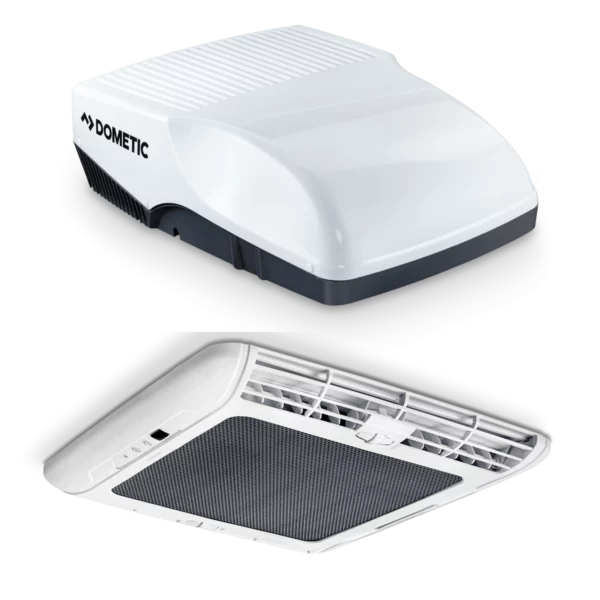

The Dometic FreshJet range of motorhome air conditioners run from a mains 230V power supply and can offer anywhere from 1000 Watts (3400Btu/h) to 2200 Watts (7500Btu/h) cooling capacity as well as offer a heating mode using heat pump technology (excluding the FreshJet 1100). Due to its compact design the Dometic FreshJet takes up little space on the roof to minimise wasted roof space.
Dometic FreshJet Features:
- Compact and elegant design.
- Light weight.
- Low power consumption.
- Low noise.
Dometic FreshJet Dimensions:
Dometic Freshjet Specifications:
|FreshJet 1100||FreshJet 1700||FreshJet 2200|
|Best for vehicle length||5m max.||6m max.||7m max.|
|Cooling capacity||1000 watts / 3400 Btu/h||1700 watts / 5800 Btu/h||2200 Watt / 7500 Btu/h|
|Heating capacity||–||800 watts||1200 watts|
|430 Watt||620 / 800 watts||950 / 1200 watts|
|Input voltage||230 volts AC/50 Hz||230 volts AC/50 Hz||230 volts AC/50 Hz|
|2.0 A||2.7 / 3.5 A||4.1 / 5.2 A
Featuring Soft Start
|Required circuit protection||3 A||Cooling: 4 A
Heating: 4 A
|Cooling: 5 A
Heating: 6 A
|Refrigerant||R 134a||R 407c||R 407c|
|Dimensions (WxHxD)||562 x 225 x 787 mm||562 x 225 x 787 mm||562 x 225 x 787 mm|
|Roof opening (WxD)||400 x 400 mm||400 x 400 mm||400 x 400 mm|
|Roof thickness||25 – 60 mm||25 – 60 mm||25 – 60 mm|
|Weight||22 kg||29 kg||32 kg|
|Test mark||e-certified to Automotive EMC Directive|
|Item designation:||Dometic FreshJet 1100||Dometic FreshJet 1700||Dometic FreshJet 2200|
