SOG System Kits for Motorhomes or Caravans Type B

Item No: 0023 SOG TYPE B

Our Price: £145.25 Incl. VAT

SOG SOG System Kits for Motorhomes or Caravans Type B 4.79, based on 14 reviews Regular price: £ 145.25 $145.25 (Sale ends ) Available from: Outdoor Bits Condition: Brand New In stock! Order now!

We Beat Prices!

Found this item for less?

Pricematch

Have Questions?

Ask a question about this item.

Contact Us


Average Rating

14 Reviews Read more

Secure Shopping

Shopping with us is 100% safe!

Read More

SOG Toilet Kits for Motorhomes & Caravans Type B



This SOG Kit is for a Thetford C200 Series Toilet Cassette System

Download SOG Leaflet in Adobe PDF Format HERE

Download SOG Unit Fitting Instructions for a Type 'B' Sog Unit HERE

2 Year Warranty.

SOG Type B Kit Contents

sog type b kit contents

Click Image above to see Larger

Pictures below show the SOG Units fitted



SOG Unit close in view of a C200 Thetford cassette with the additional hose

sog door installation

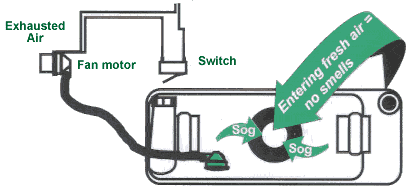

How the SOG System Works



The SOG ventilator is switched on as soon as the blade valve starts to open and is switched off again when the blade valve is closed. The fact that no smells can leave the waste holding tank is brought about by - as soon as the ventilator is switched on there is a suction effect in the waste holding tank which draws in fresh air through the blade valve. This down-flow acts as a seal and prevents the gases and smells from rising. The fresh air that is drawn in removes the new odours in the toilet bowl when it is being used.

The decomposition process for sewage and toilet paper is accelerated by the increased flow of oxygen so that no additional chemicals are required. Ordinary toilet paper, not special for chemical toilets, should be used so that this is decomposed completely.

The exhaust ventilator with its motor has been specially developed for sanitary systems. The power consumption, 0.43 watt, is very low.

Motorhome SOG System Kits



 The SOG Motorhome Toilet Ventilation System is the ecological solution for motorhome and caravan toilets.

Advantages over standard chemical toilets:-

    • It is 100% chemical free.
    • Low running costs as ordinary toilet paper can be used and no chemicals needed.
    • Low power consumption
    • Flexibility when wild camping etc as no requirement to use a chemical WC Toilet emptying point and normal toilets can be used for emptying due to the lack of chemicals. You can also empty whenever the chance arises safe in the knowledge that a fresh batch of chemicals isnt going to be wasted.
    • Unwanted aromas no longer present inside motorhome even when SOG System is in use.
    • Emptying process easier as the contents of the cassette are decomposed more than without SOG.

There are four kits for cassette type toilets and one kit for permanently installed tanks. These SOG Toilet kits have been constructed using traditional German engineering and know-how.

All Thetford waste holding tanks can be modified for the SOG toilet ventilation system.

The equipment makes the use of chemicals superfluous : optimal decomposition is guaranteed and unpleasant odours are removed including during use.

SOG Toilet Kit B for C200 Type Cassettes

SOG Kit for C200

17 Litre waste holding tank in vehicles with rotatable toilet bowls

SOG Toilet system for C200

No boring of holes necessary. The over pressure valve is replaced by a connecting piece.



The filter housing with an active charcoal filter mat neutralises the gases at the outer wall of the vehicle

Sog Kits for Motorhomes Q&As



Q1. What are the dimensions of the Filter Housing (The plate that covers the filter on the outside of the cassette compartment door)



A1. The filter housing is 7" High X 5 1/4" Wide, It can be fitted either horizontally or vertically (Some Rapido vans for instance require horizontal fitting)


SOG System Kits for Motorhomes or Caravans Type B Reviews

Below are a selection of reviews of SOG System Kits for Motorhomes or Caravans Type B's from our past customers with the most recent review of the SOG System Kits for Motorhomes or Caravans Type B at the top, we hope you find them useful.


stephen Ferguson - Thursday 09 July, 2015

Great kit. Easy to fit, fitted in around 20 mins. No smells it the toilet.


Stephen Collard - Thursday 05 September, 2013

I ordered my kit a while ago and due to no fault of SOG / Outdoor Bits Link Express delivery didnt know where to go because their SAT NAV took them to the wrong place, so be warned.
The SOG kit is very comprehensive and is quite easy to install as long as you have the tools to do it and are fluent in German. Lucky for me I am pitched next door to some one that has one fitted to their motor home and copied the installation.
The instructions are printed in several languages but all diagrams are in German. There is nothing wrong with the kit and it does what says on the tin, however the instructions need to be improved with larger text and diagrams and all text for the UK in English


gordon archer - Thursday 04 August, 2011

this piece of equipment is one of the best purchases i have made.it removes all smells from the toilet compartment and no nasty niffs drift into the living area ,could do with one in the home!!
if you are thinking of getting one, dont, just do it you will not regret it.


Average Rating 4.79

14 Reviews


Want to read more? See all customer reviews...

  • Toilet Cassette: Thetford C200
  • Vent Type: Door Vent

SOG System Kits for Motorhomes or Caravans Type B Reviews

Below are a selection of reviews of SOG System Kits for Motorhomes or Caravans Type B's from our past customers with the most recent review of the SOG System Kits for Motorhomes or Caravans Type B at the top, we hope you find them useful.


stephen Ferguson - Thursday 09 July, 2015

Great kit. Easy to fit, fitted in around 20 mins. No smells it the toilet.


Stephen Collard - Thursday 05 September, 2013

I ordered my kit a while ago and due to no fault of SOG / Outdoor Bits Link Express delivery didnt know where to go because their SAT NAV took them to the wrong place, so be warned.
The SOG kit is very comprehensive and is quite easy to install as long as you have the tools to do it and are fluent in German. Lucky for me I am pitched next door to some one that has one fitted to their motor home and copied the installation.
The instructions are printed in several languages but all diagrams are in German. There is nothing wrong with the kit and it does what says on the tin, however the instructions need to be improved with larger text and diagrams and all text for the UK in English


gordon archer - Thursday 04 August, 2011

this piece of equipment is one of the best purchases i have made.it removes all smells from the toilet compartment and no nasty niffs drift into the living area ,could do with one in the home!!
if you are thinking of getting one, dont, just do it you will not regret it.


David McGarry - Sunday 12 December, 2010

Excellent, fast delivery and superb support from SOG


Barry Williams - Saturday 04 December, 2010

Very quick delivery from Outdoor Bits. Parts checked over and all found to be correct.
Read through instructions and then re read them stood at side of motorhome so as to identify different parts that they were talking about.
Found the instructions very easy to understand.
I have got a Burstner Delphin T700 where the toilet access door is in the back wall of the motorhome and it did make it a fairly simple operation.
Fitting only took a maximum of 1 hour from start to finish (and that was in the rain!)
Very pleased with the results. Certainly no smell from toilet unit and it also keeps the bathroom smelling sweeter.
Can't say whether it is a saving on toilet fluid, as I am still putting a little in each time as I have got 3 bottles of the stuff. Time will tell.
Have used it for about 30 days since installation and can find no "down" side to it.
Wish I had fitted one ages ago. Thoroughly recommended.


Dennis Brown - Saturday 20 February, 2010

HI.
EXCELLENT SYSTEM,fitted in approx one hour,only problem was with outer filter door of which the top plastic lugs broke off as the filter was too thick to close door,door was replaced ok.
excellent service from outdoor bits....no instructions on how to fit with locker door hinges at bottom of door.took a while to figure out.system working ok.would recommend sog system.....


David Rabbetts - Tuesday 29 September, 2009

Brilliant! Works as described. My toilet compartment door is hinged on the right which means the flexible pipe is quite a bit shorter, propably a good thing.


Joseph Carty - Saturday 19 September, 2009

System is excellent. The instructions were quite clear and precise if you had a left or right handed door. Unfortunately my door has hinges at bottom (Autosleeper) and this caused a major headache as no instructions/measurements were available for my unit. It was a case of measure again and again just to be sure. It took over 4 hours to get the measurements right as you can only visualise where it will sit. As you will be aware, once you drill hole in bodywork thats it, you have committed yourself. However now fitted and all is well.
Regards
Joe


Richard Maya - Monday 08 June, 2009

Not only am I delighted at the environmental benefits that come with having one of these kits, but I honestly can\'t see why they haven\'t been picked up on and incorporated by coach builders to be installed on newly built caravans and motorhomes. No need for chemicals, which is a little bit of that valuable space claimed back after all. No need for ridiculously overpriced and harder to come by toilet paper. And so far the toilet has been just as easy to empty, and less smelly in use (even in recent hot weather!).

The installation was really quite straight forward and didn\'t take me much more than an hour. Given the chance to do it again, however, I would have drilled a slightly smaller hole into the pour-out-spout than they recommended, as by the time I had smoothed the edges around the hole, I had widened it enough to require some extra silicone sealant to get the job done (Hence the four stars instead of five). Other than that, very much a DIY kit, so don\'t be put off because it requires you to fit it!

I live in my caravan full-time, so I enjoy little modifications here and there to make life easier and more efficient. The SOG does both and is one of the most satisfying mods I have done so far. I highly recommend it to anyone, whether environmentally minded or not, as a way to genuinely improve your home on wheels.


deborah boughey - Sunday 10 May, 2009

Been using the system for over one year now.

Fantastic! Eco-Friendly, no chemicals, no chemical or any other smells! Family of 4 using it 'fully' and absolutely no smells!!!!

We travel in France using Farms, Vineyards (France Passion) and Aires - these places don't often have loos and we don't miss them now that we have our SOG toilet.

We were very surprised at how the SOG took away any nasty niffs because we have been caravanning/motorhoming for 12 years and there always seemed to be a chemical smell in the van before we had the SOG.

Those chemicals are dangerous and disgustingly smelly so glad to say 'goodbye' to them.

Fully recommended, the product exceeded expectations; probably the best addition to our kit so far.


Norman Blackburn - Thursday 30 April, 2009

We've had our MH for three and a half years and wondered about SOG kits for their eco friendliness and claims to keep down the smell.

Over-wintering again in Spain/Portugal this year, we found ourselves on more and more wild sites or those where there were toilet facilities but no Chemical Disposal Point.

I fitted a kit last month in about an hour and found it easy as a DIY job if you read through the fitting instructions a couple of times before starting. I got confused at one point until I realised that the instructions catered for 2 types of Thetford toilets and you have to choose one or the other and carry out that set of instructions. (The way the German translation is written, you could be forgiven for thinking you have to do the work according to BOTH options!).

Anyway, we're just back from a week in Scotland and my wife says the SOG has been worthwhile on the smell front alone. Like many wives, she can detect toilet smells at one part in a trillion, and the SOG passed the test with flying colours. Should have fitted a SOG years ago!

Buy a spare cassette adaptor (stopper on a key-ring) if you have a back up Thetford cassette so that both are ready to operate in the SOG mode.


kevin Borman - Tuesday 04 November, 2008

We bought this SOG system to replace our existing one because the motor had worn out. It is annoying that you can\'t get replacements but have to buy the whole thing again, most of which we haven\'t used. Having said that, the SOG itself is absolutely brilliant and we hated being without it. It\'s important to us not to use chemicals - and not to have a smelly toilet of course, and this is the only way to achieve both of those.

If you haven\'t got one - get it, you\'ll never regret it!

Admin Note: Replacement Fans can be purchased


Carol Weaver - Sunday 24 June, 2007

I can really only re-iterate what David has written.

We bought our Starline 640 from Germany fitted with a SOG 5 years ago. It has been one of the best bits of kits that was added by the previous owner.

Having just sold the vehicle, it is also one of the bits of kits that will definitely be added to our next one, worth the money over the years, unless you only keep your vehicle for a year.... BUT... bear this little bit in mind, if you do a lot of wild-camping and don't always stop on camp sites, the ability to do a 'bulk delivery' to any public toilets is possible or if really stuck, you can dig a hole and bury it, because it is all natural products, with no chemicals added.

Buy it, if you don't have it, and this must be one of the cheapest places to buy, and remember there is also a 5% discount if you are a member of Outdoor Bits.....

Carol Weaver (carol)


David Burley - Friday 18 November, 2005

Well the first question people ask is "What is a SOG"


A SOG system is a very basic idea that works suprisingly well. The kit comprises of a small fan, some tubing, a thetford adaptor and a carbon charcoal filter.

Basically the SOG works on the principal that biological/fecal matter decomposes faster when exposed to bacteria. This bacteria is encouraged to grow by the presence of oxygen.

How this works with respect to the SOG Kit is that once installed you open the flap to the toilet as per normal, but this action actually trips a switch which activates the fan and draws air into the toilet from within the toilet compartment and passes this through the cassette and out through the carbon filter to be expelled outside.

In actual use we were suprised at how well the system works, no chemicals are needed when a SOG Kit is fitted so its a money saver, plus the cassette contents are completely 100% Biodegradeable and can be flushed down standard toilets so is excellent for wild camping fans. The system also requires no specialised toilet paper, in fact we found the cheaper the toilet paper the better it decomposed.

The aroma of chemicals and ahem other smells within the toilet is also reduced to be minimal.

If we exchange our motorhome in the future we will definately be getting a SOG System fitted to our new van.


Average Rating 4.79

14 Reviews

Want to read more? See all customer reviews...


Do you own this product? Write a review!
